Small Scale Palm Oil Mill (1-5 TPH)
Complete small scale palm oil pressing line ideal for startups and small businesses.
Process Flow
Main Equipment Included
| No. | Equipment | Model | Qty | Function |
|---|---|---|---|---|
| 1 | Palm Fruit Sterilizer | YHS-5 | 1 set | Steam sterilization of FFB |
| 2 | Palm Fruit Thresher | YHT-5 | 1 set | Separate fruit from bunches |
| 3 | Palm Fruit Digester | YHD-5 | 1 set | Mash and heat palm fruit |
| 4 | Screw Palm Oil Press | YHX-10 | 1 set | Extract crude palm oil |
| 5 | Palm Oil Clarification Tank | YHC-5 | 2 sets | Purify crude palm oil |
| 6 | Vacuum Drying System | YHV-5 | 1 set | Remove moisture from oil |
| 7 | CPO Storage Tank | 500L | 2 sets | Store finished crude oil |
| 8 | Conveyor System | - | 1 set | Transport material between processes |
| 9 | Boiler | 0.5T | 1 set | Supply steam for sterilization |
| 10 | Electrical Control Panel | - | 1 set | Centralized control system |
Solution Details
The small scale palm oil mill is designed for investors who want to enter the palm oil industry with a limited budget. With a processing capacity of 1-5 tons per hour of fresh fruit bunches (FFB), this solution is perfect for small plantations and startup businesses in Southeast Asia and Africa.
Key Advantages:
- Low investment cost with quick return on investment (ROI within 12-18 months)
- Compact design requiring minimal land area (as small as 200m²)
- Easy to operate and maintain - only 3-5 workers needed per shift
- Modular design allows future capacity expansion
- Complete turnkey service from design to installation and commissioning
Project Implementation:
We provide a complete turnkey service covering every stage of your project: site planning & feasibility study, equipment manufacturing & quality control, on-site installation & testing, and operation & maintenance training.
Technical Specifications
| Processing Capacity | 1-5 TPH (FFB) |
| Oil Extraction Rate | ≥ 20% (based on FFB) |
| Oil Residue in Fiber | < 8% |
| Power Consumption | 30-80 kW |
| Steam Consumption | 300-500 kg/h |
| Water Consumption | 2-5 m³/h |
| Workers Required | 3-5 per shift |
| Workshop Area | 200-500 m² |
| Installation Period | 30-45 days |
| Delivery Time | 45-60 days |
Related Project Cases

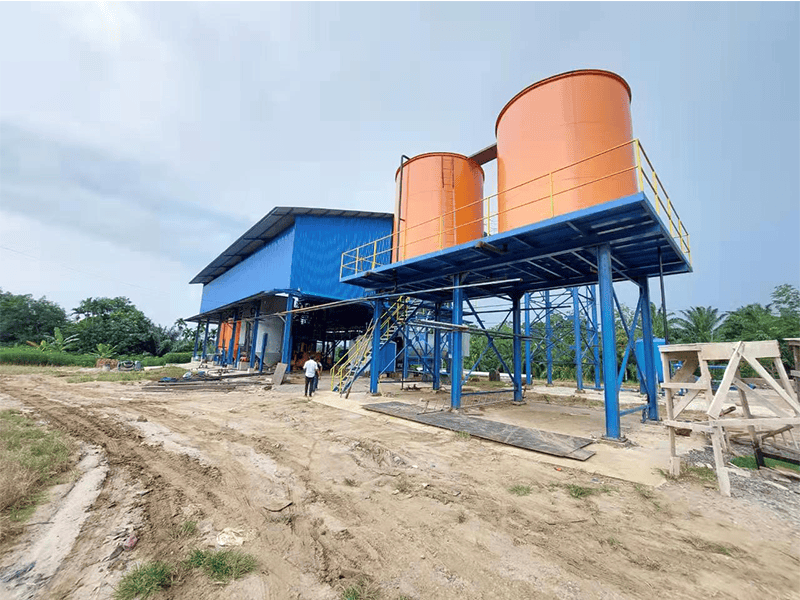

2TPH Small Scale Palm Oil Mill in Nigeria
Lagos, Nigeria | Capacity: 2 TPH
