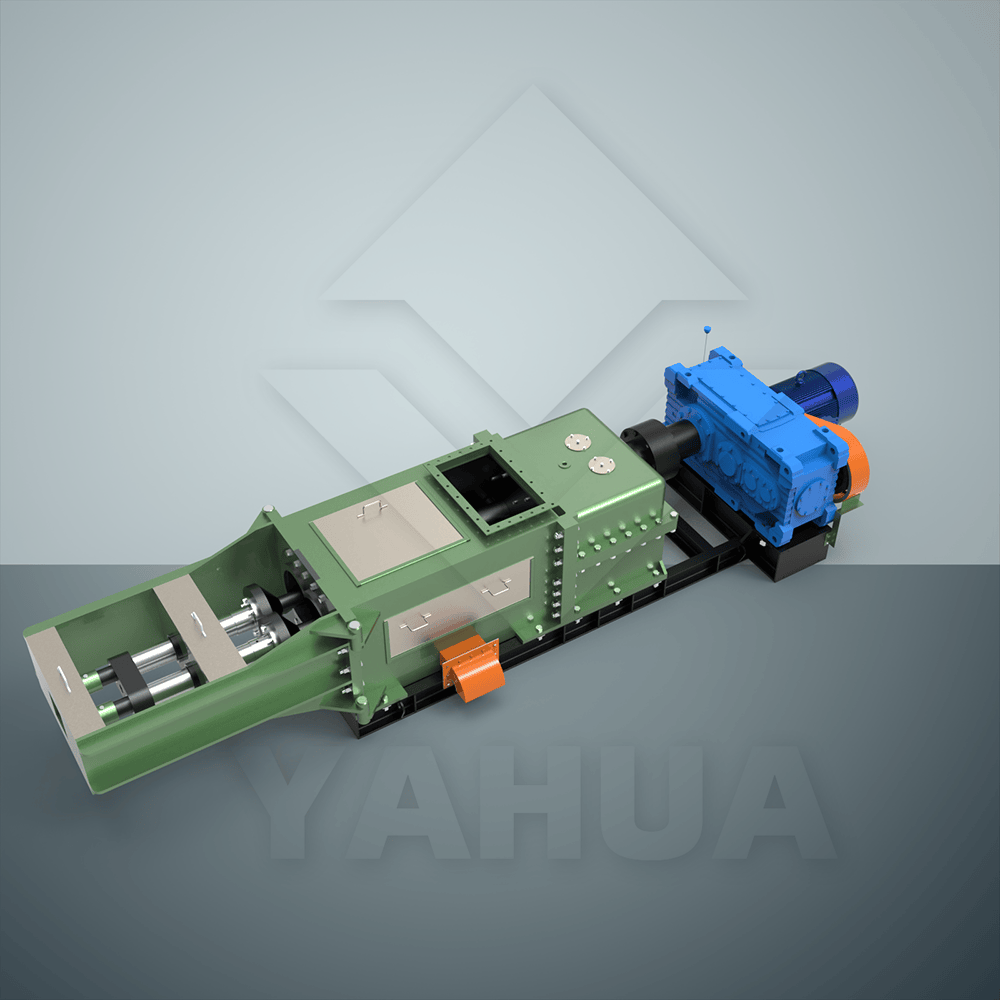

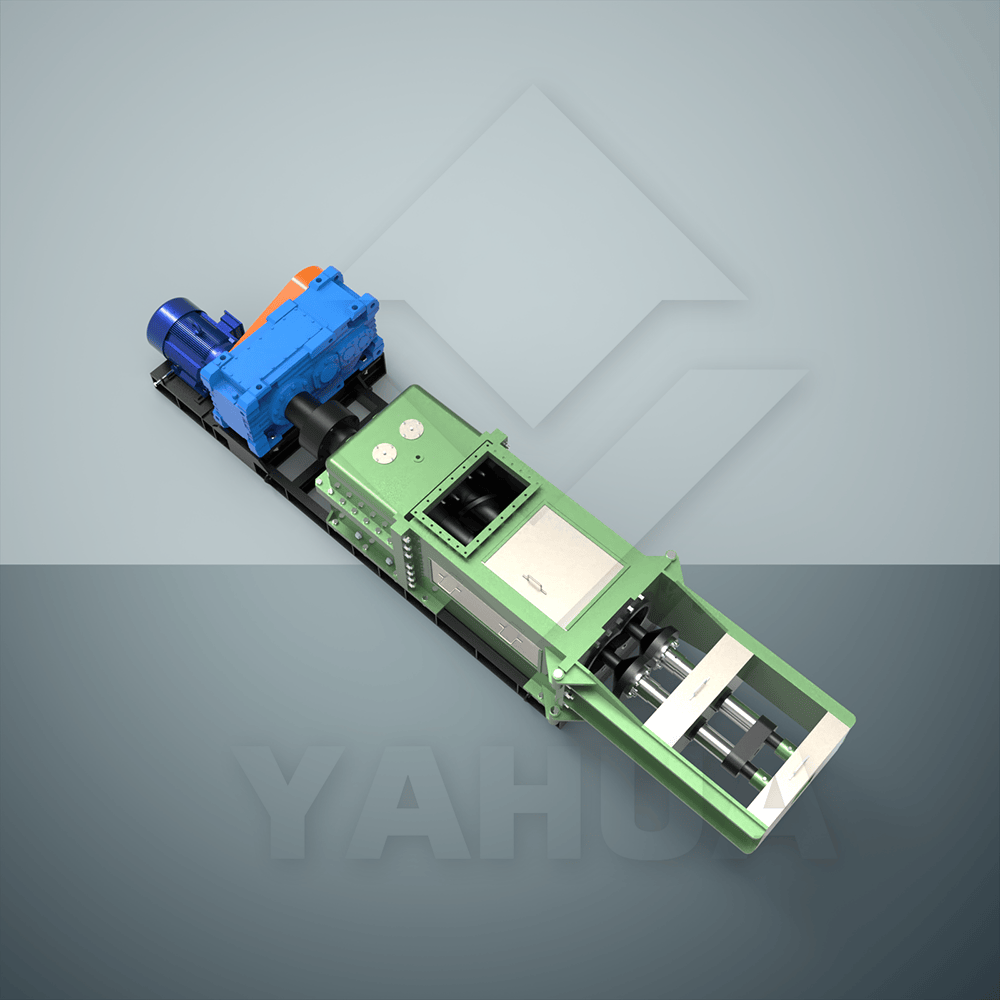

Double Screw Palm Oil Press Machine

High efficiency palm oil press with capacity from 1-100 TPH and 95% oil recovery rate, suitable for various scale mills.

Main Parameters

Type	Double Screw Press
Application	Palm Fruit Oil Extraction
Capacity	1-100 TPH
Oil Residue Rate	≤ 5%
Motor Power	15-90 kW
Material	Stainless Steel 304/316
Warranty	12 Months

Product Models

Model	Capacity	Power	Dimension (mm)	Weight
YHX-10	1-2 TPH	15 kW	2800×900×1500	2,500 kg
YHX-30	5-10 TPH	30 kW	3500×1100×1800	5,200 kg
YHX-60	15-30 TPH	55 kW	4200×1300×2000	8,500 kg
YHX-100	30-60 TPH	75 kW	5000×1500×2200	12,000 kg
YHX-200	60-100 TPH	90 kW	5800×1700×2400	18,000 kg

Product Details

The double screw palm oil press machine is the core equipment in the palm oil extraction process. It features a dual-screw system that provides superior oil recovery compared to traditional single-screw presses, achieving oil residue rate below 5% and extraction efficiency up to 95%. Suitable for various scale mills, it efficiently extracts crude palm oil (CPO) from digested palm fruit.

Key Features:

Double-screw design ensures high oil extraction rate with residue below 5%
Automatic feeding and continuous operation for maximum productivity
Adjustable pressure system for optimal performance under varying feed conditions
Made of high-quality stainless steel 304/316 for corrosion resistance and durability
Self-cleaning scroll mechanism prevents clogging during continuous operation
Energy-efficient operation with low maintenance requirements
Available in multiple models to suit different capacity requirements from 1 to 100 TPH

Working Principle: The digested palm fruit enters the pressing chamber through the feeding hopper. The double screws rotate and push the material forward, gradually increasing pressure to squeeze out the oil. The oil flows through the screen bars into the oil collection pan, while the pressed fiber cake (expeller) is discharged from the end. The dual-screw intermeshing action ensures more thorough compression and higher oil yield than conventional single-screw designs, enabling uninterrupted oil production without batch interruptions.
