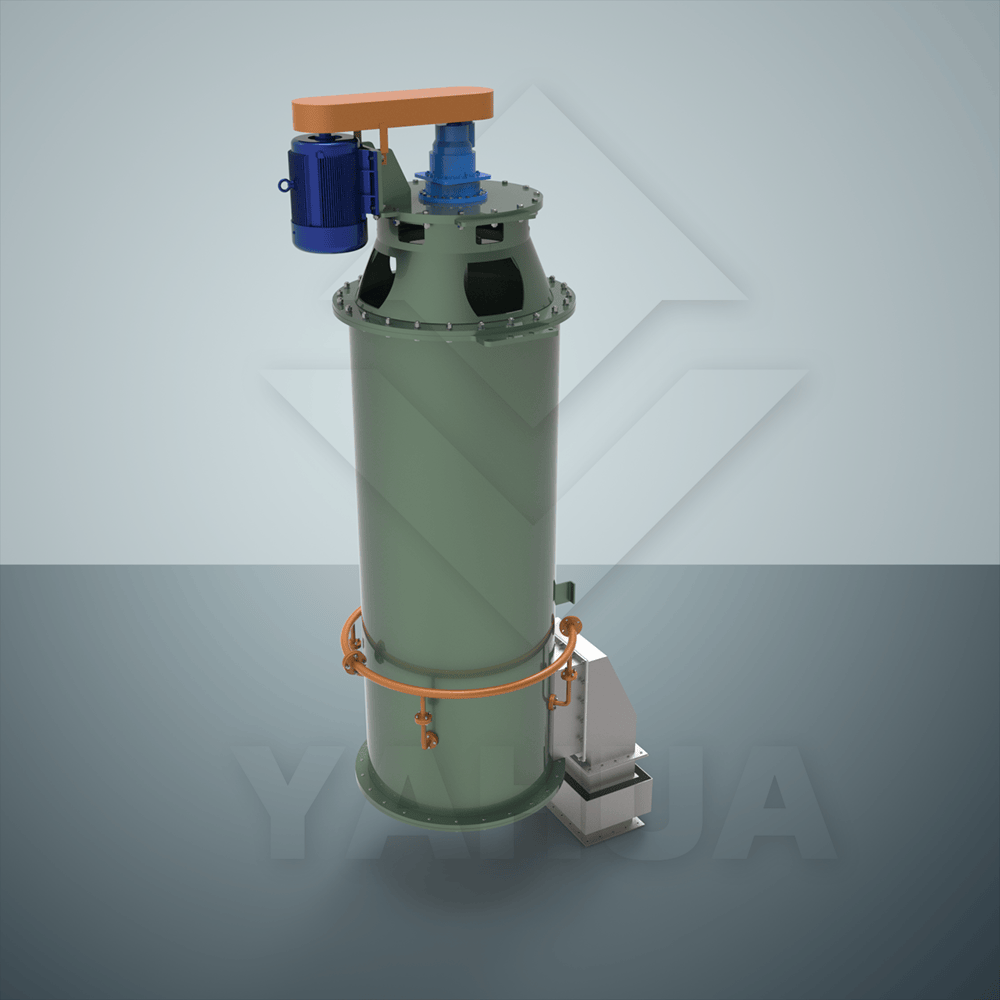

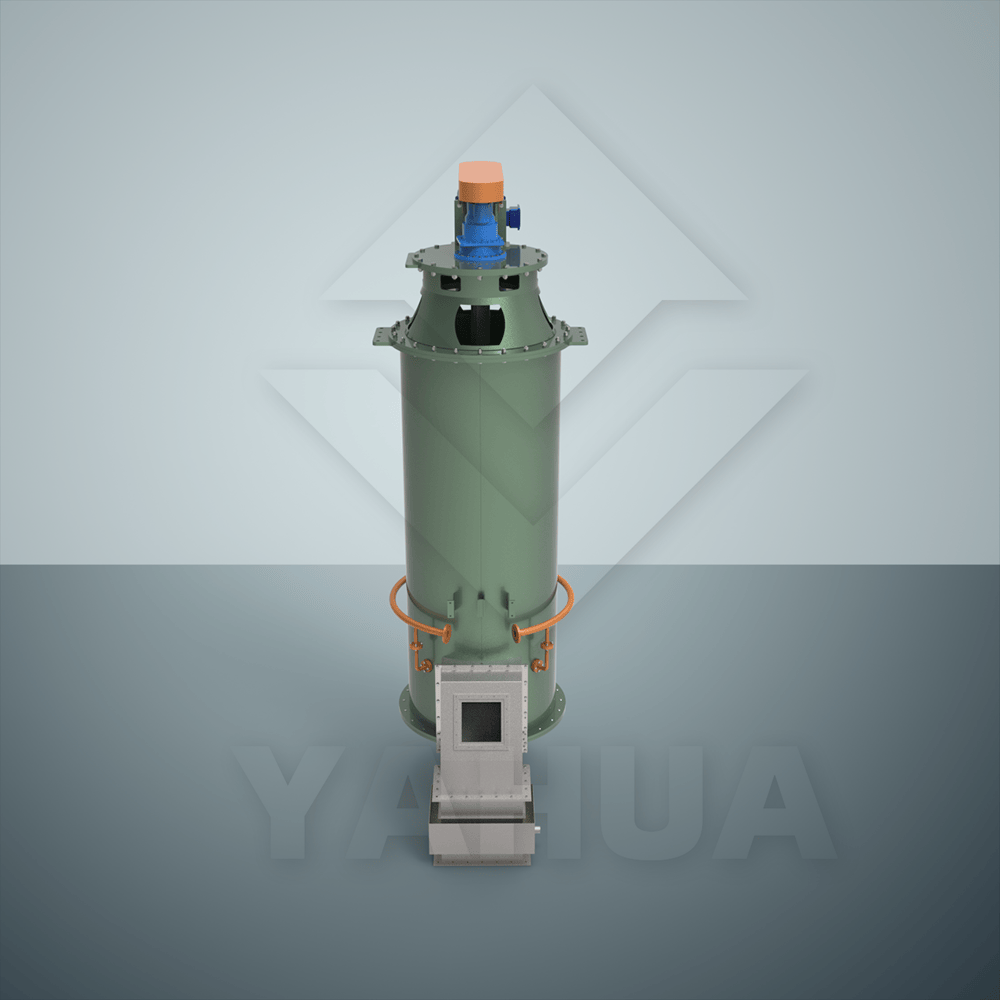

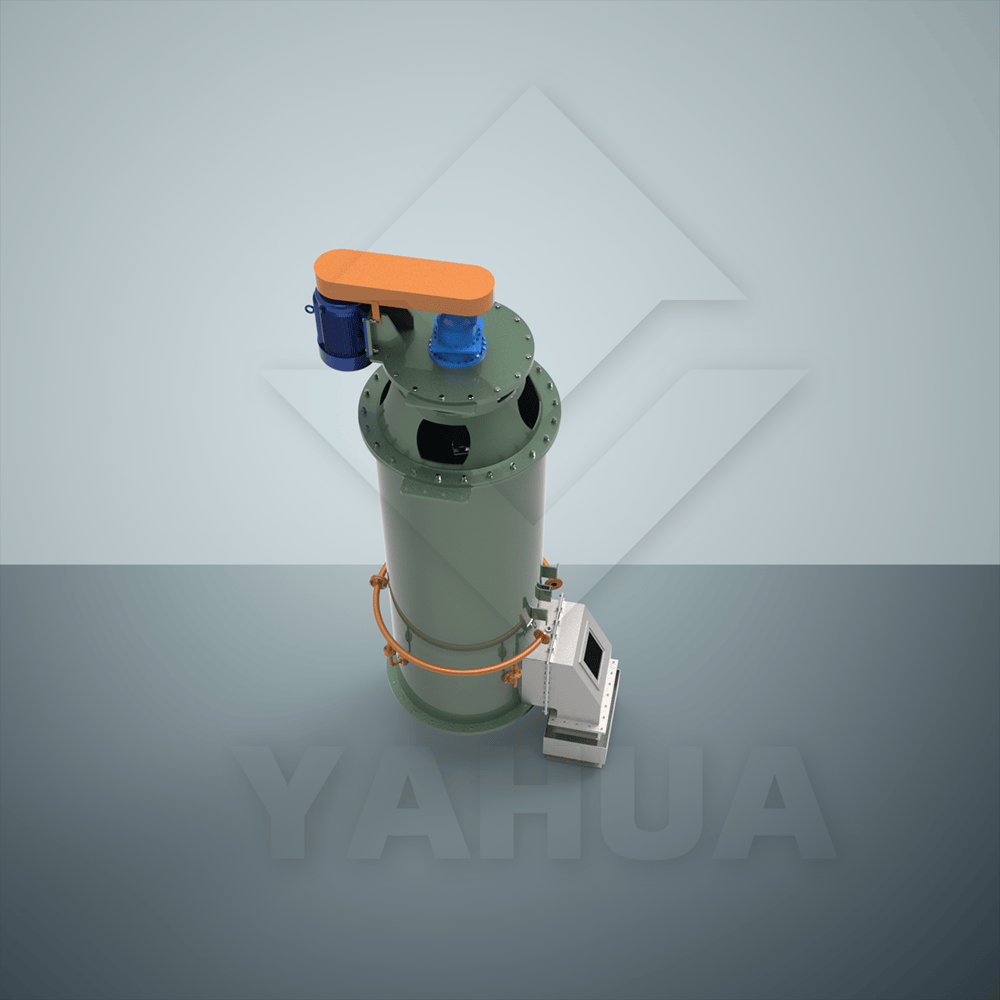

Palm Fruit Digester

Vertical/horizontal digesting machine for mashing and heating palm fruit before pressing.

Main Parameters

Type	Vertical / Horizontal Digester
Capacity	1-50 TPH
Motor Power	7.5-45 kW
Digesting Temperature	90-100°C
Material	Stainless Steel
Warranty	12 Months

Product Models

Model	Capacity	Power	Dimension (mm)	Weight
YHD-5	1-5 TPH	7.5 kW	1500×800×1200	800 kg
YHD-15	5-15 TPH	15 kW	2000×1000×1500	1,500 kg
YHD-30	15-30 TPH	22 kW	2500×1200×1800	2,200 kg
YHD-50	30-50 TPH	45 kW	3000×1400×2000	3,500 kg

Product Details

The palm fruit digester is used to mash and heat sterilized palm fruit before the pressing stage. Proper digestion is essential for maximizing oil extraction efficiency — it breaks down the fruit tissue and releases the oil from the cell walls.

Key Features:

Vertical or horizontal design to suit different plant layouts
Steam heating jacket maintains optimal digesting temperature (90-100°C)
Robust stirring arms ensure thorough mashing and even heating
Continuous operation with automatic feeding and discharging
Made of food-grade stainless steel for hygiene and durability

Working Principle:

After threshing, the palm fruit falls into the digester, where rotating stirrer arms mash the fruit into a homogenous pulp. Simultaneously, steam is injected through the jacket to heat the pulp to 90-100°C, which reduces oil viscosity and improves pressability. The digested mash is then fed directly into the screw press for oil extraction.
