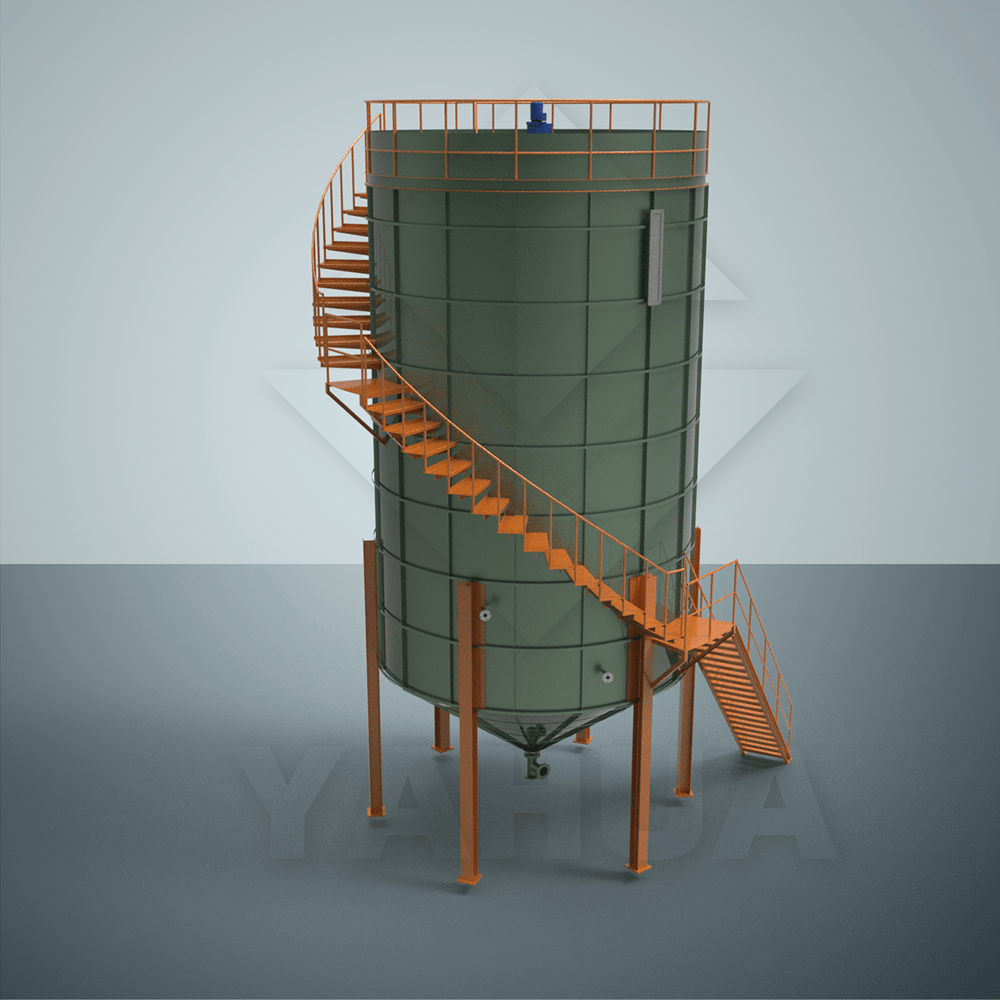

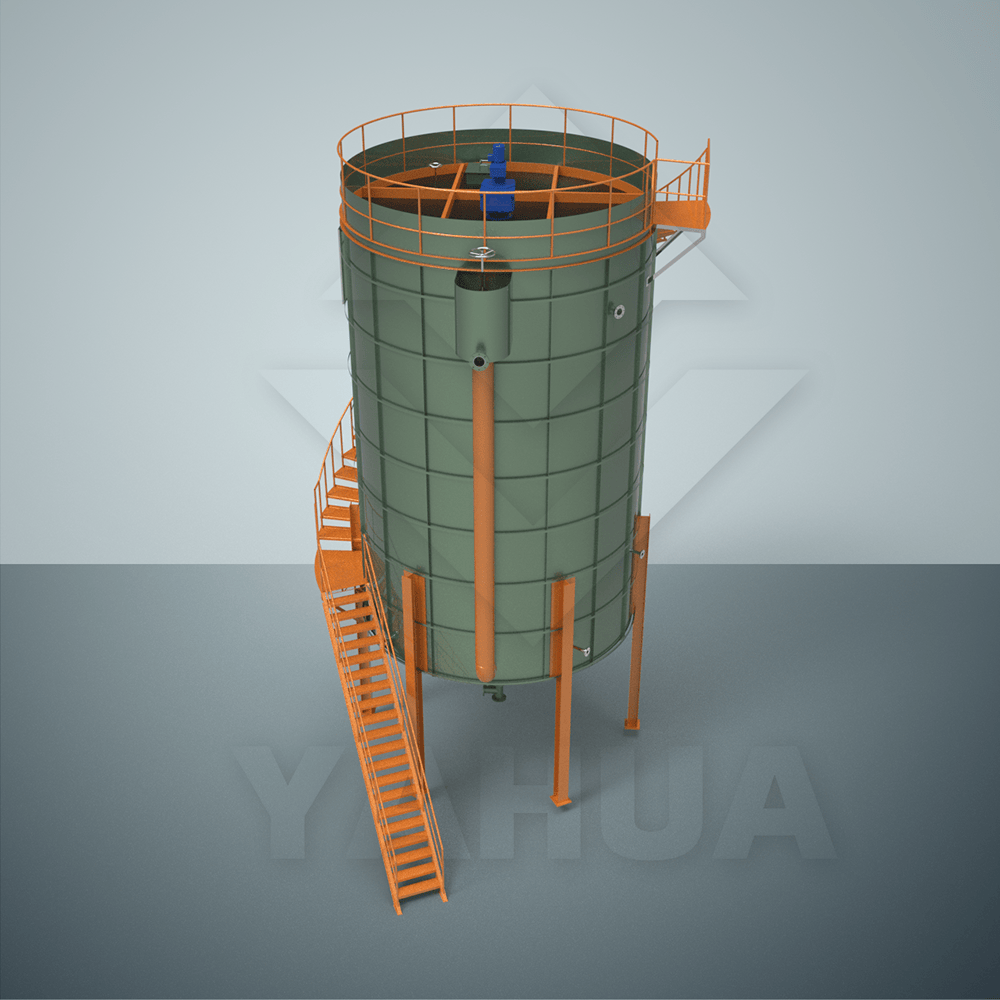

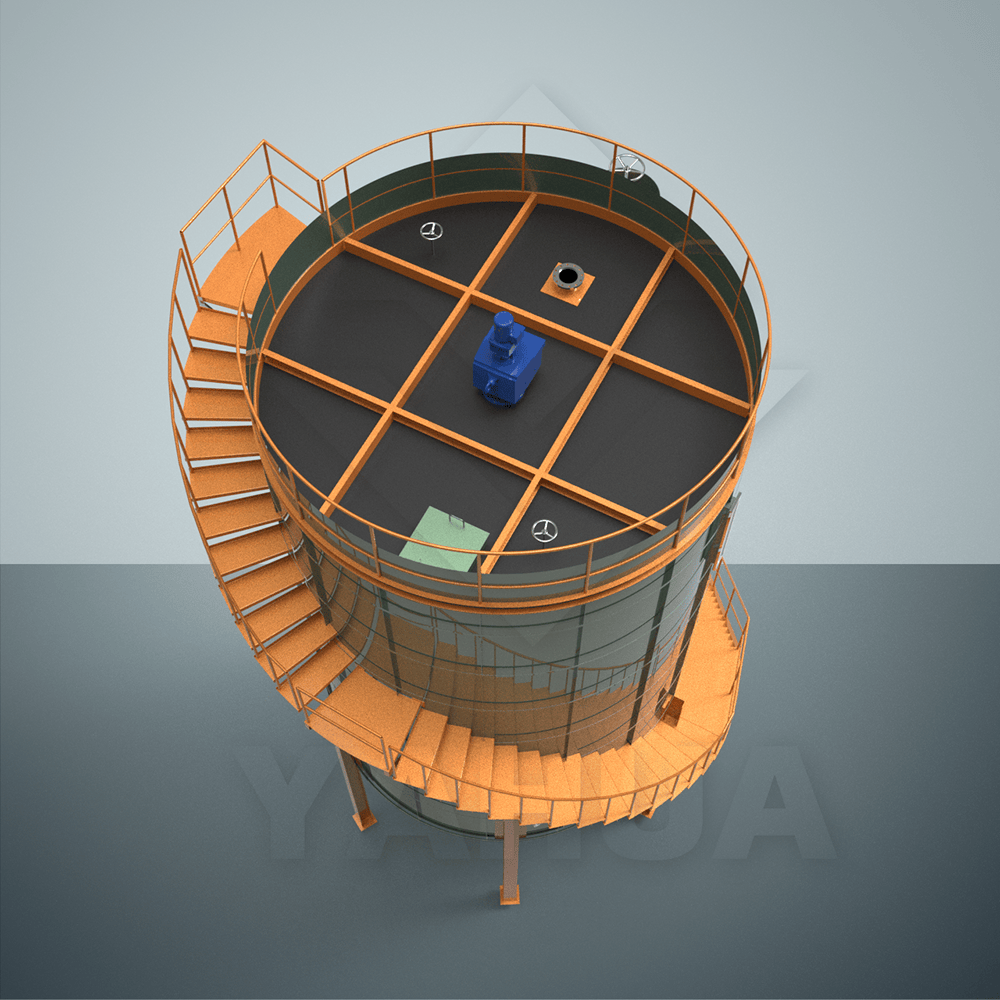

Palm Oil Clarification Tank

Continuous clarification system for purifying crude palm oil by removing water, sludge, and impurities.

Main Parameters

Type	Continuous Clarification System
Capacity	1-60 TPH
Oil Purity After Clarification	> 95%
Moisture Content	< 0.1%
Motor Power	3-15 kW
Material	Stainless Steel
Warranty	12 Months

Product Models

Model	Capacity	Power	Dimension (mm)	Weight
YHC-5	1-5 TPH	3 kW	2500×1200×2000	1,200 kg
YHC-15	5-15 TPH	5.5 kW	3500×1500×2500	2,000 kg
YHC-30	15-30 TPH	7.5 kW	4000×1800×2800	3,000 kg
YHC-60	30-60 TPH	15 kW	5000×2200×3200	5,000 kg

Product Details

The palm oil clarification tank is a critical post-pressing equipment that purifies crude palm oil (CPO) by separating it from water, sludge, and solid impurities. The clarified oil is then ready for drying and storage.

Key Features:

Multi-stage clarification process for high oil purity
Gravity separation combined with centrifugal technology
Continuous operation with minimal oil loss
Low power consumption and easy maintenance
Integrated sludge recycling system to maximize oil recovery

Working Principle:

The crude palm oil from the press contains water, fiber, and sludge. It first passes through a vibrating screen to remove large solids, then enters the clarification tank where gravity separates the oil from water and sludge. The oil is further purified through a centrifugal separator, achieving purity above 95%. The clarified oil is then sent to the vacuum drying system.
