Product Details

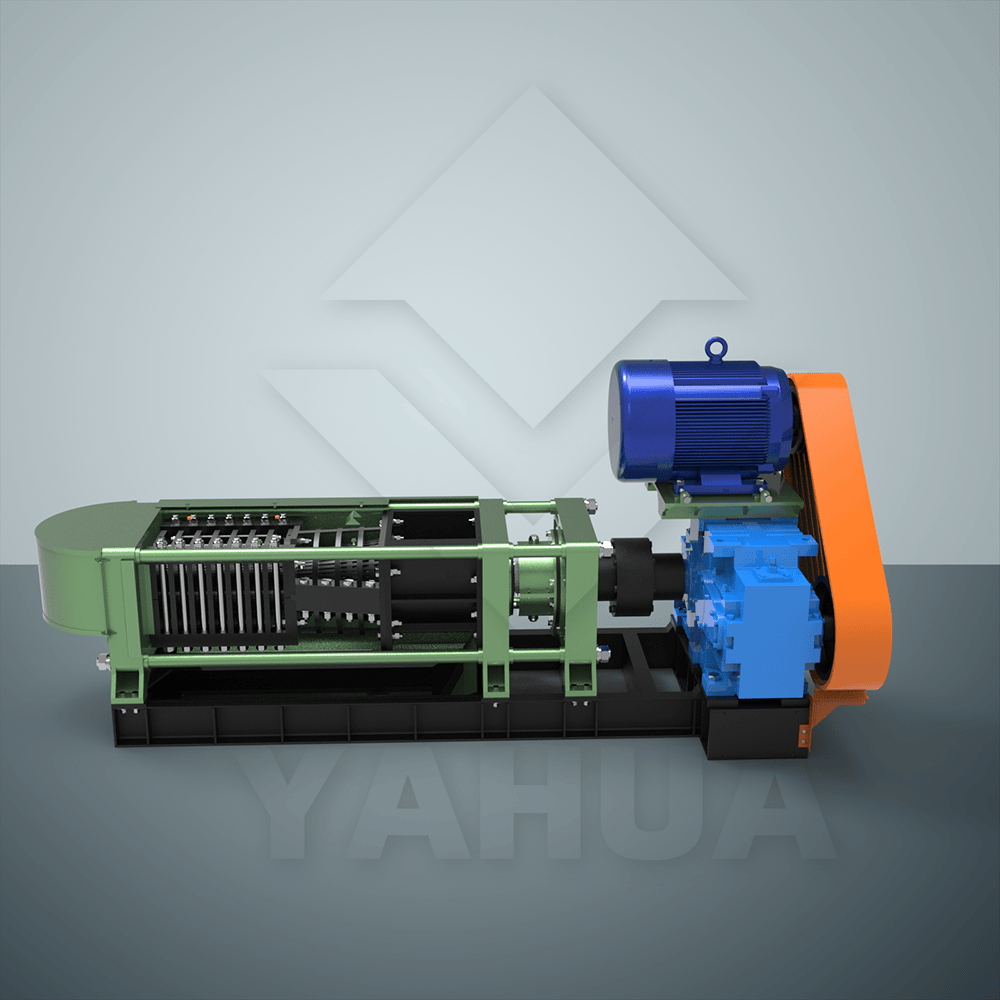

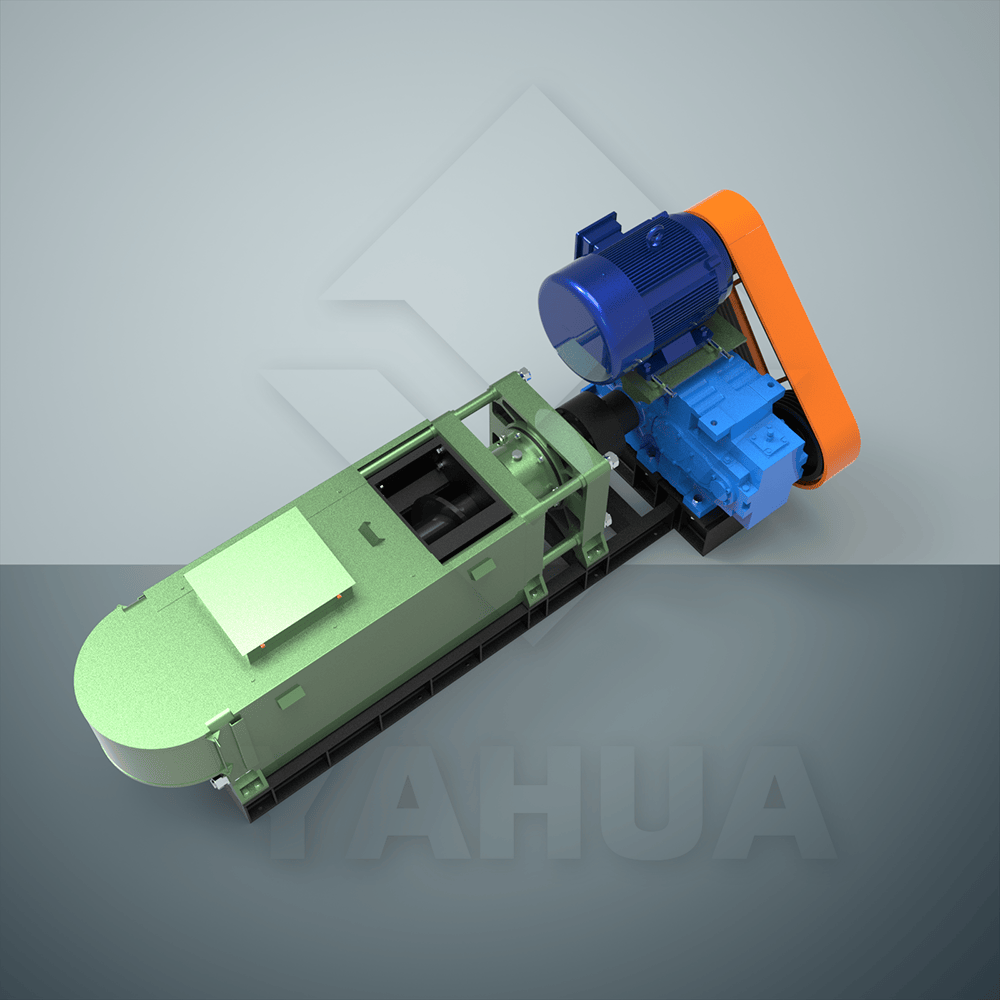

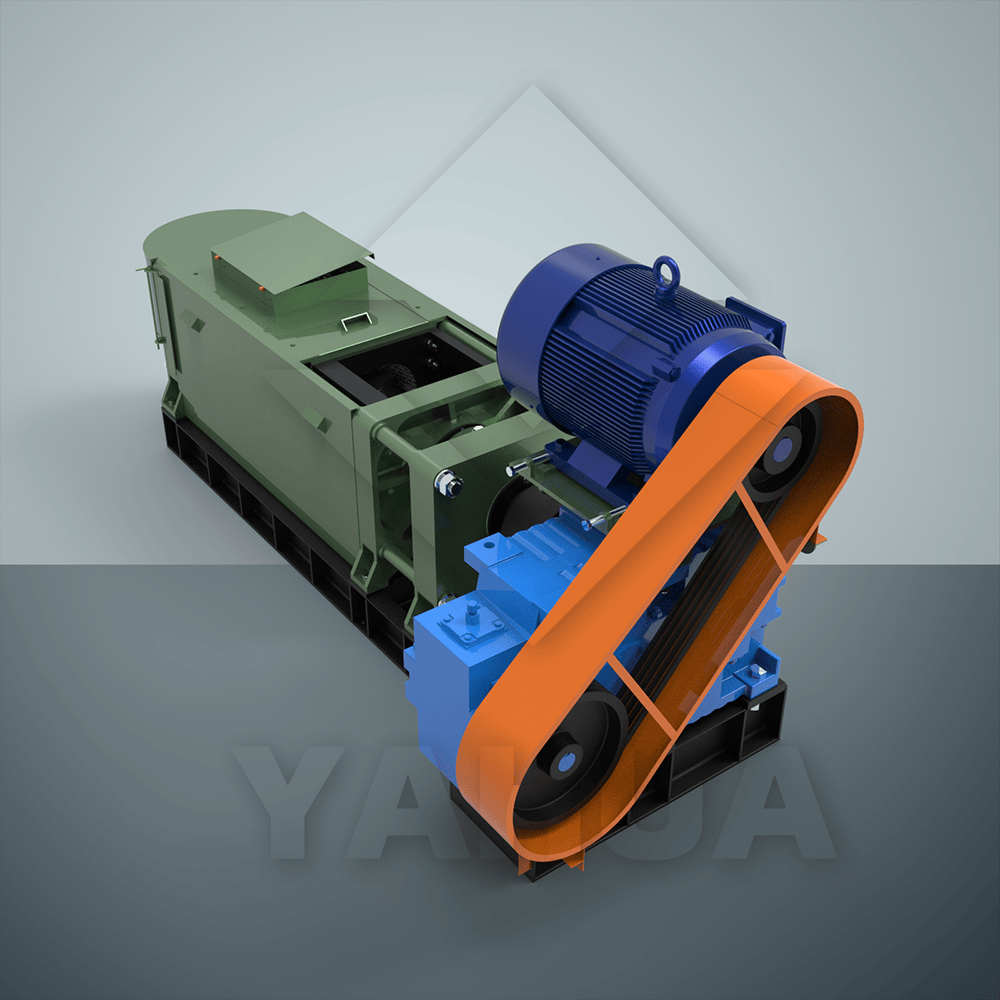

The EFB shredder and press is an essential auxiliary system for palm oil mills looking to recycle empty fruit bunches (EFB) after the threshing process. This combined shredding and pressing system effectively compresses fiber material for easier handling and transportation, while recovering residual oil that would otherwise be lost.

Key Features:

• Hammer mill shredder reduces EFB to uniform fiber size for efficient pressing
• Screw press extracts residual oil from shredded EFB, achieving less than 3% residual oil rate
• Adjustable compression ratio for different fiber moisture levels
• Carbon steel with wear-resistant coating for extended service life
• Low power consumption and easy maintenance design
• High throughput capacity from 2 to 20 tons per hour
• Shredded and pressed EFB fibers are ideal for boiler fuel, composting, or pelletizing

Working Principle:

Empty fruit bunches from the thresher are fed into the hammer mill shredder, where rotating hammers tear and shred the fibrous material into small, uniform pieces. The shredded EFB is then conveyed into the screw press, which applies mechanical pressure through a rotating screw through a conical die, reducing volume and increasing density. The pressed oil is collected and returned to the clarification process, while the dewatered EFB fiber is discharged for use as biomass fuel or compost.
