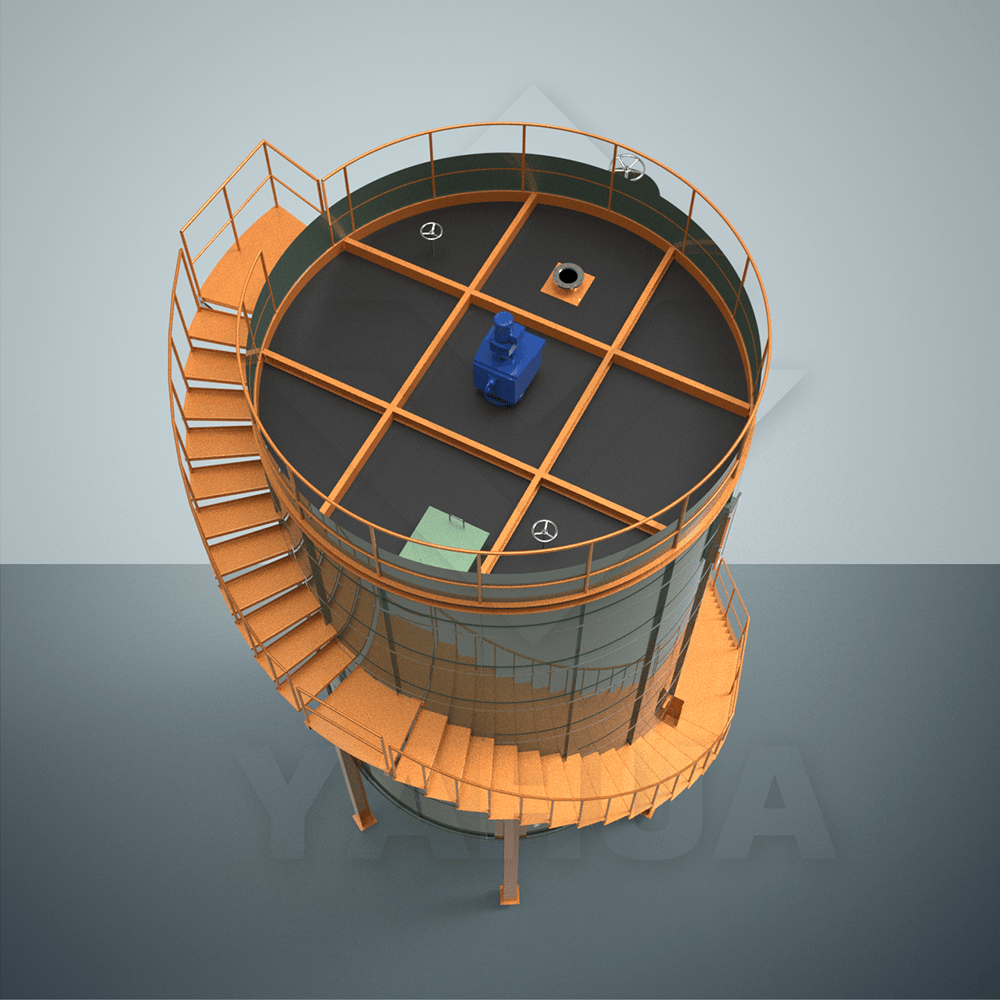

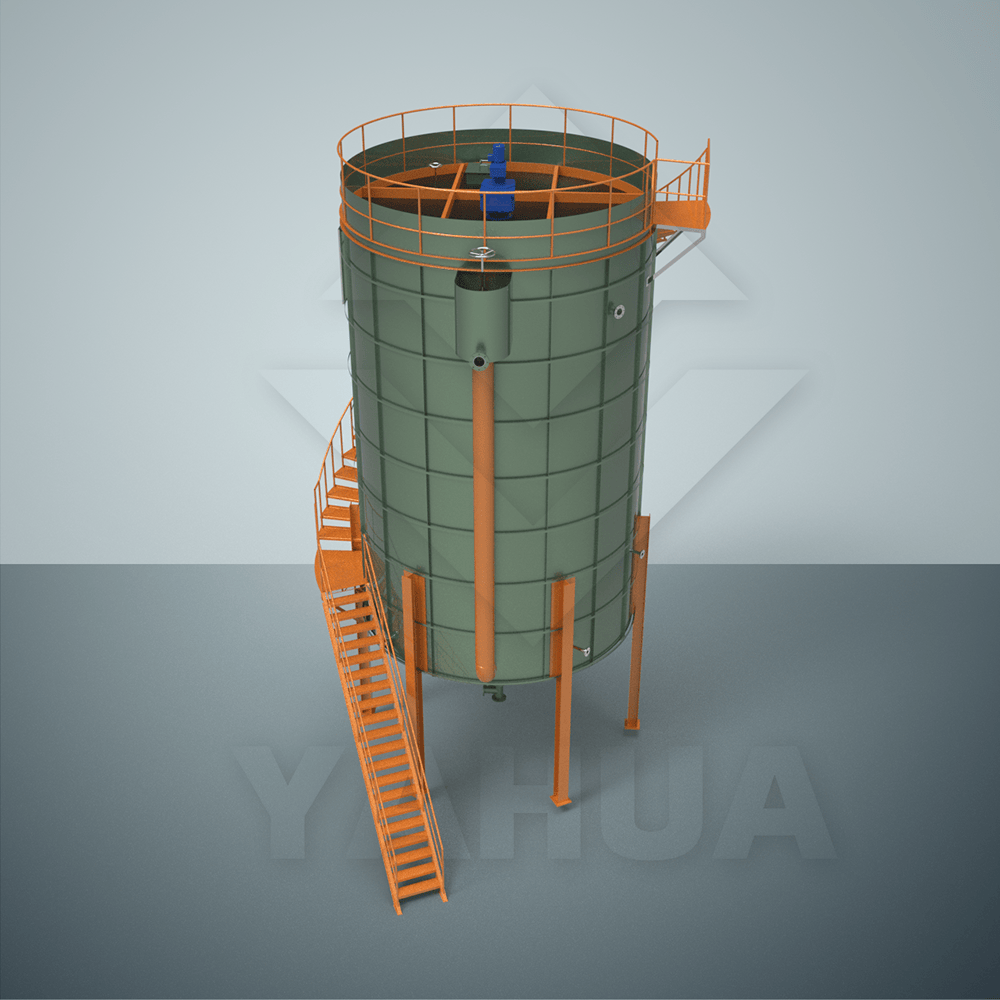

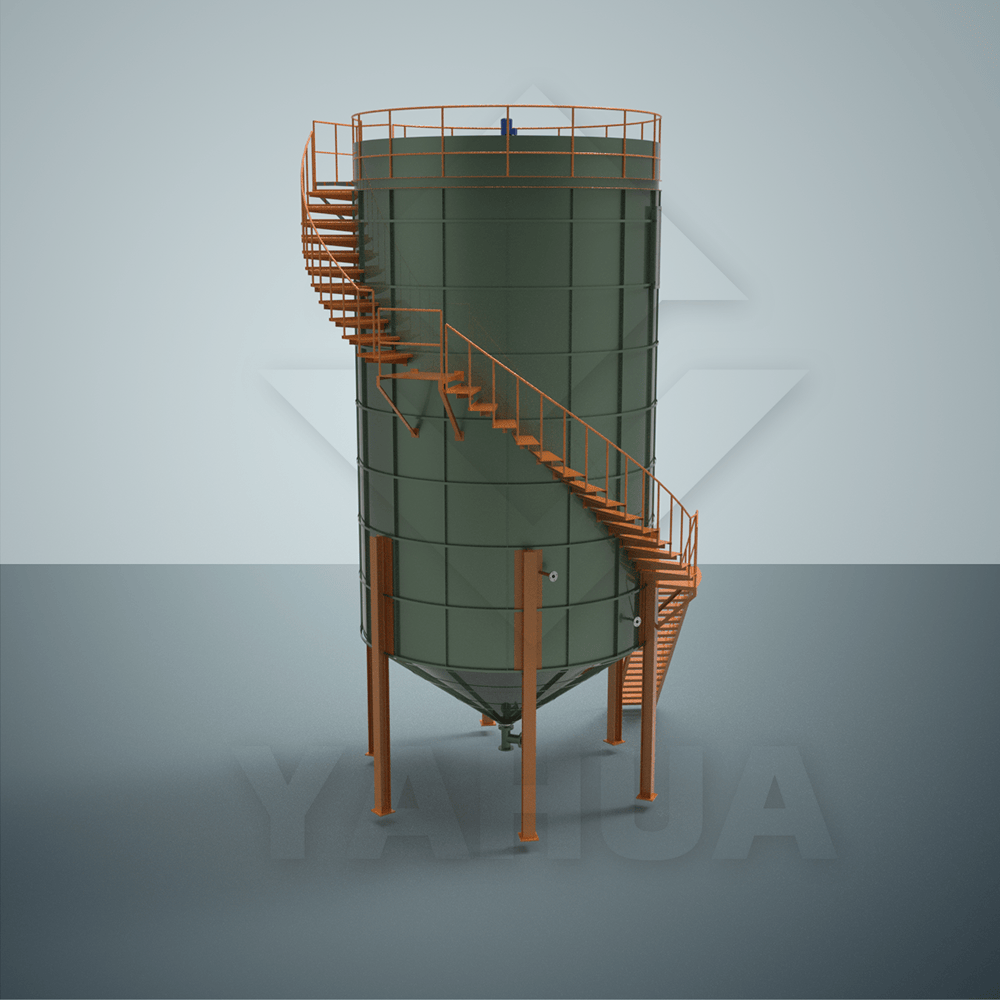

CPO Storage Tank

Vertical and horizontal storage tanks for crude palm oil (CPO) and palm kernel oil (PKO), available from 5 to 500 tons capacity.

Main Parameters

Type	Vertical / Horizontal
Capacity	5-500 Tons
Material	Stainless Steel / Carbon Steel
Heating	Optional Steam Coils
Insulation	Rock Wool / Polyurethane
Warranty	12 Months

Product Models

Model	Capacity	Power	Dimension (mm)	Weight
YHST-10	10 Tons	-	Φ2500×3500	1,200 kg
YHST-50	50 Tons	-	Φ3500×6500	3,500 kg
YHST-100	100 Tons	-	Φ4500×8000	6,000 kg
YHST-200	200 Tons	-	Φ5500×10000	10,000 kg

Product Details

The CPO storage tank is designed for the safe storage of crude palm oil (CPO) and palm kernel oil (PKO) after the clarification and drying process. Available in both vertical and horizontal configurations, these tanks come in capacities ranging from 5 to 500 tons to meet the needs of mills of all sizes.

Key Features:

Vertical and horizontal designs for flexible installation options
Optional steam heating coils to maintain oil temperature and prevent solidification
High-quality insulation with rock wool or polyurethane to minimize heat loss
Constructed from stainless steel or carbon steel for long-term durability
Available from 5 to 500 tons capacity to suit any mill scale

Working Principle:

The dried crude palm oil is pumped into the storage tank where it is held at a controlled temperature to prevent solidification. Optional steam heating coils circulate through the tank bottom to maintain the oil above its melting point, while the insulation layer reduces energy consumption by minimizing heat dissipation. The tanks are equipped with level indicators, temperature sensors, and access manways for inspection and maintenance.
